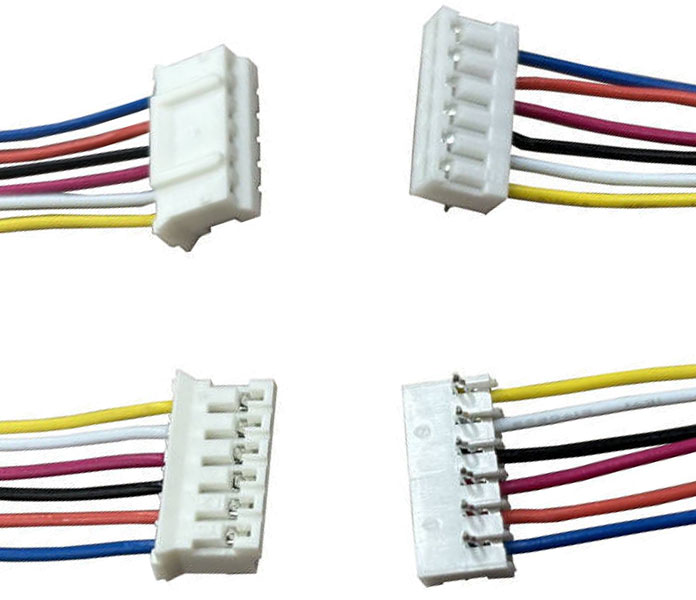

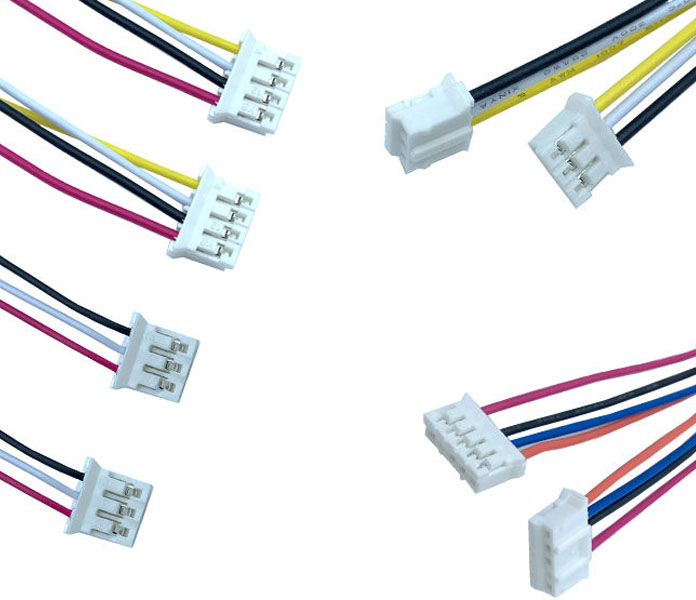

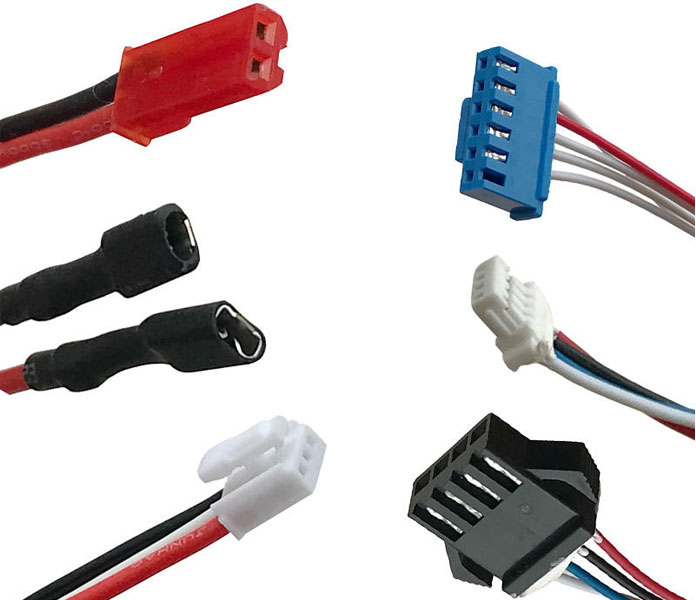

Easy wiring harness be made by small pitch connector with switch and supply for refrigerator and air-conditioning PCB board product using.
Connector PN :
SH/ZH/TX/PHConnector Pitch :
1.0/1.25/1.5/2.0 mmCable PN :
UL1571-26/28/30 AWGColor :
red/black/white/blue or customCable Length :
anyOrder(MOQ) :
1000 piecesPayment :
T/TLead Time :
15-20 daysEasy wiring harness design small pitch connector in both end for contacting PCB to refrigerator and air-conditioning product, saving space and time for assembly, it using UL1571 wire mostly in 26/28/30 AWG.
Sample | QC | Shipping | Payment | Carton Size | Carton Weight | Custom Service | After-sale |
Free for testing | 100% testing | Express or Ocean | T/T | 20X30X40 CM | 0.5KG/each | Yes | 24 hours service |

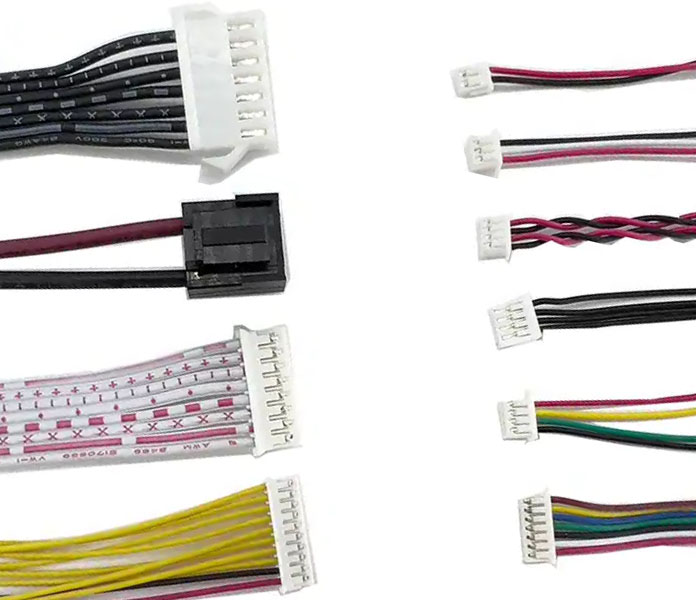

Product Detail
|
|
Factory Show

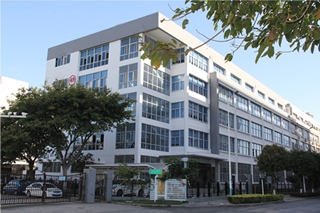

Building |

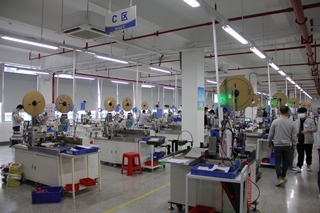

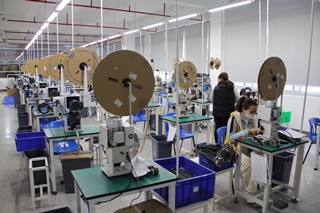

Auto-Making |

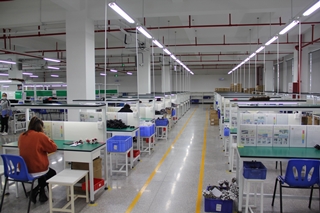

Semi-auto Making |

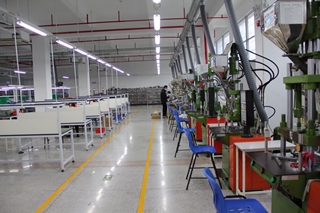

Over-mold producing |

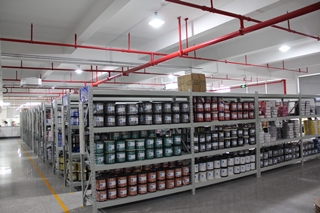

Warehouse |
QC Line |

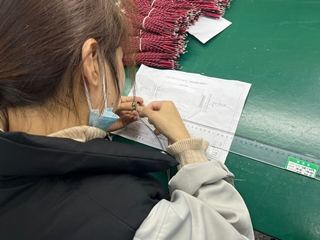

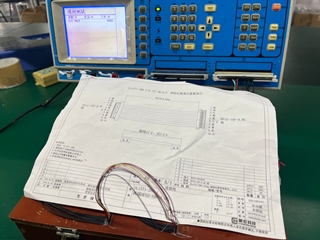

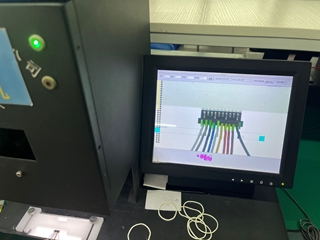

Testing Processing

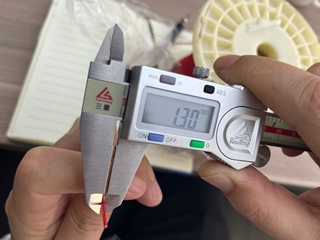

OD and Plug strong Testing |
Breakover-testing |
Color Testing |

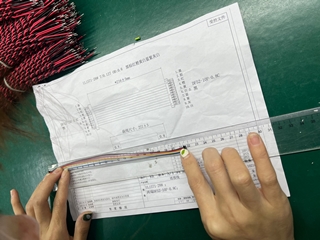

Wire Lenath Testing |
Connector push back testing |

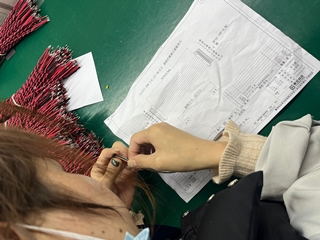

Color Checking Again |
Packing Detail

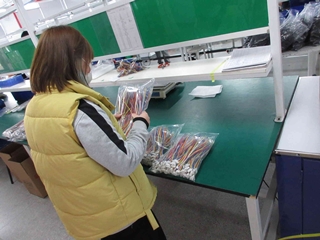

Packing in bag |
Then in carton |

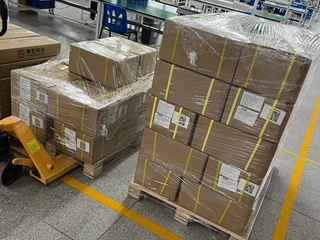

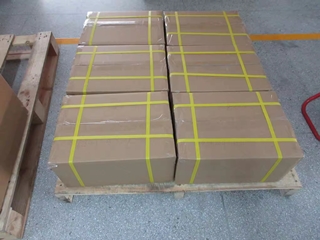

Last by pallet |
FAQ
Q1: How can I get your quotation?
A1: We need your help to send us your drawing or sample, so that we can know your connector and wire model number, also the wire length, and how to contact each wire between different connector.
