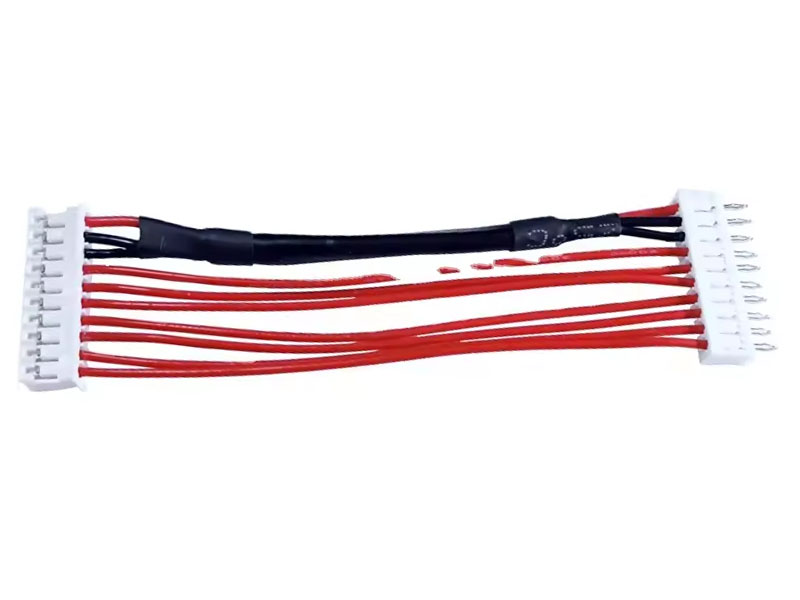

Custom shield flat flex ribbon cable

Custom shield flat flex ribbon cable

Flat flex ribbon cable(FFC) is about many variety of electrical cable that is both flat and flexible, with flat solid conductors. A flexible flat cable is a type of flexible electronics in different field.

  • Connector PN :

    PH to SAW
  • Connector Pitch :

    2.0 mm
  • Cable PN :

    UL2725-28AWG and silicone wire
  • Color :

    white/red or blue/red
  • Cable Length :

    0.5 and 1 meter or custom
  • Order(MOQ) :

    1000 pieces
  • Payment :

    T/T
  • Lead Time :

    15-20 days

Flat flex ribbon cable are used instead of round cables for using, especially in high-flex applications. They usually take full use for space than round cables, often offering better EMI/RFI suppression and eliminating wire-coupling issues.

FFC cables are good at in many pitches, such as 0.500 mm, 0.625 mm, 0.635 mm, 0.800 mm, 1.00 mm, 1.25 mm, 1.27 mm, 2.00 mm, 2.54 mm, but the most common pitches are 1.25 mm, and 2.0 mm 2.54 mm





Sample QC Shipping Payment Carton Size  Carton Weight Custom Service After-sale
Free for testing 100% testing Express or Ocean T/T 20X30X40 CM 0.5KG/each Yes 24 hours service

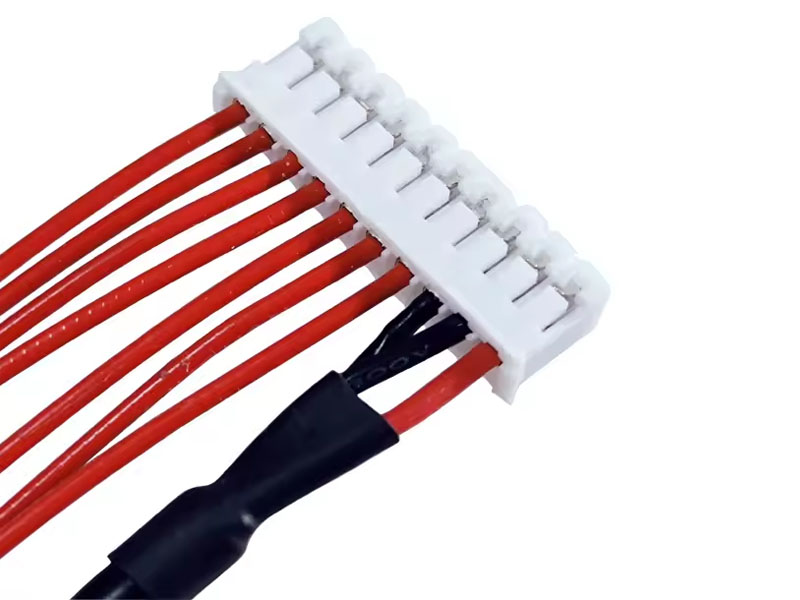

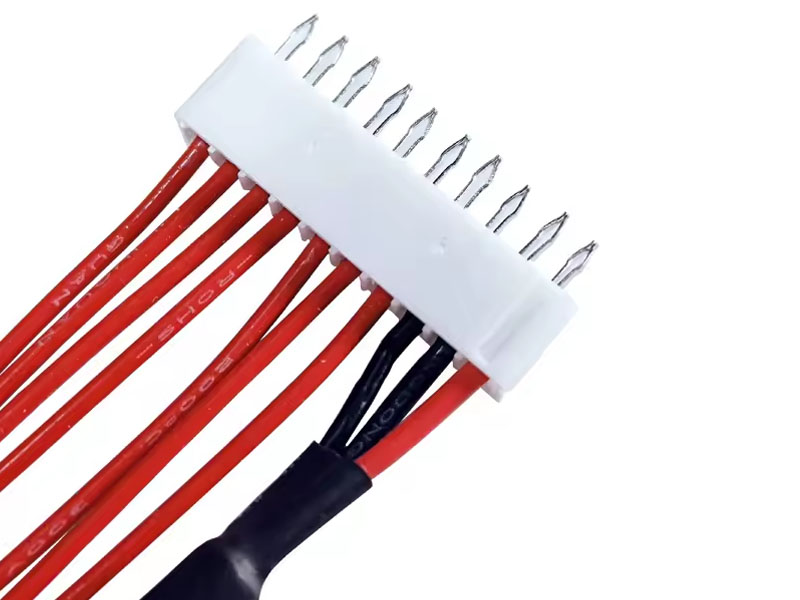

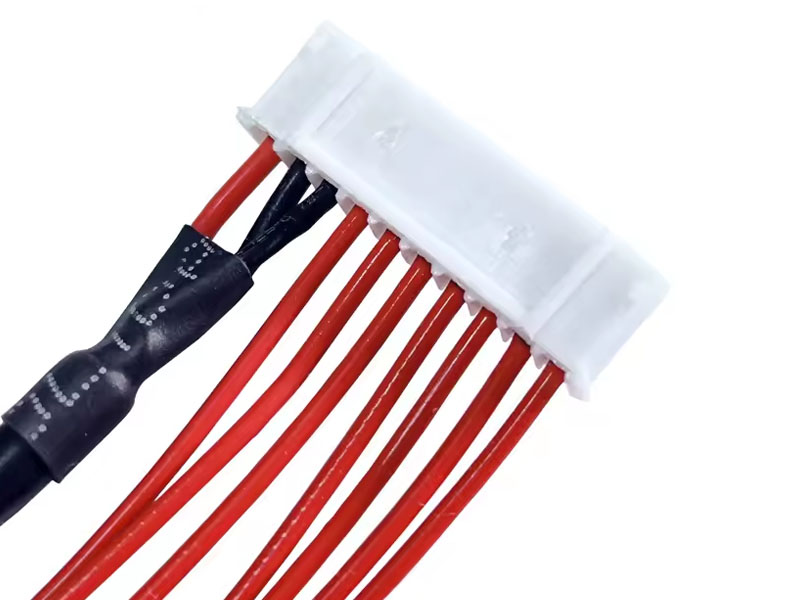

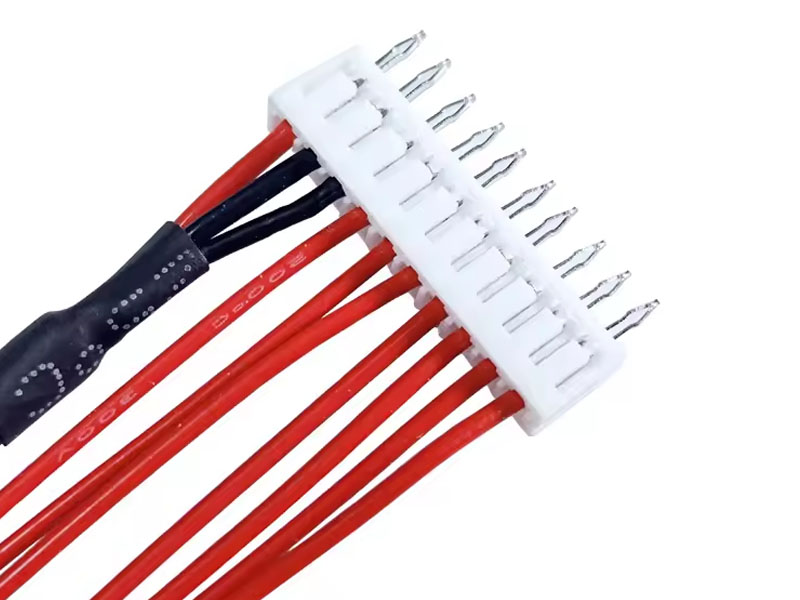

Product Detail

flat flex ribbon cable



shielded flat flex cable



custom flat flex cable high flex ribbon cable



Factory Show

Building

Auto-Making

Semi-auto Making

Over-mold producing

Warehouse

QC Line



Testing Processing

OD and Plug strong Testing

Breakover-testing

Color Testing

Wire Lenath Testing

Connector push back testing

Color Checking Again



Packing Detail

Packing in bag

Then in carton

Last by pallet



FAQ

Q1: How can I get your quotation?

A1: We need your help to send us your drawing or sample, so that we can know your connector and wire model number, also the wire length, and how to contact each wire between different connector.

Q2: How can I get your sample? It's free for testing?
A2: Yes, we offer free samples for testing service when we had done the negotiation about the price and product detail.
Q3: How you guarantee your product quality?
A3: We adopt ISO and IATF16949 control system for guarantee our quality, also we promise that all complete or sample goods should be 100% testing before packing and sending to you.
Q4: How long for your shipping?
A4: For the sample, it will be done within 5-7 days after confirm the detail. To the order, goods will be finished within 15-20 days after the sample confirmation.
Q5: How long for your quality guarantee period?
A5: 12 months.
