18 years specification in custom FFC cable assembly

18 years specification in custom FFC cable assembly

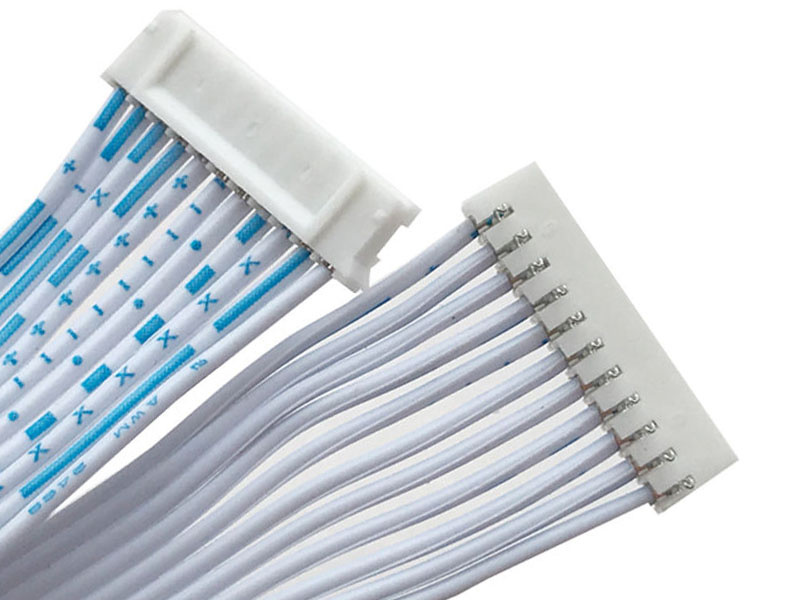

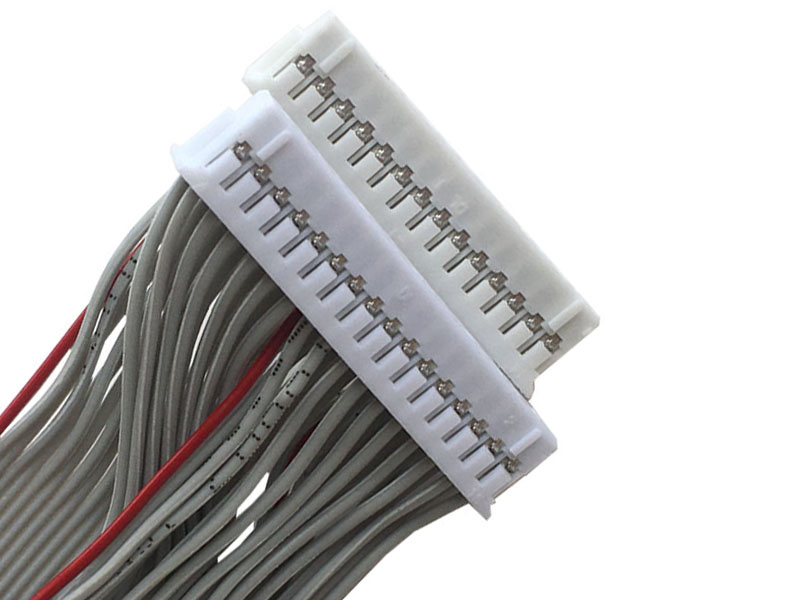

FFC cable assembly  mean supply custom service for your FFC cable assembly request basic on your drawing or sample requirement, it can custom 100% same to your design.  Usual use PH-2.0 connector in one side, another side will be SAN/SCN/SANW/SCNW so that the pins can be welded to the PCB.

  • Connector PN :

    PH to SCN/SAN
  • Connector Pitch :

    2.0 to 2.5/2.0 mm
  • Cable PN :

    Ul2468-28AWG
  • Color :

    white-blue/white-red/gray-red
  • Cable Length :

    custom basic on your drawing
  • Order(MOQ) :

    1000 Pieces
  • Payment :

    30% Deposit and rest in balance before delivery
  • Lead Time :

    15-20 days

FFC cable assembly be widely used in home appliance PCB board, as well as construction machinery or medical industry, wire harnesses provide several advantages over loose wires and cables.

The design of a wire harness usually requires the main specification that connector model number and pitch, also the wire model number with AWG, last is show how to contact each wire between all connector.

Sample QC Shipping Payment Carton Size  Carton Weight Custom Service After-sale
Free for testing 100% testing Express or Ocean T/T 20X30X40 CM 0.5KG/each Yes 24 hours service



Product Detail

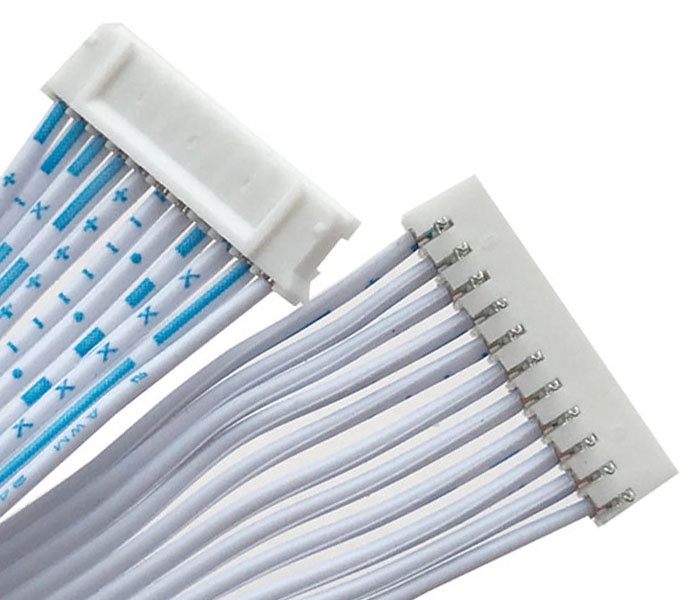

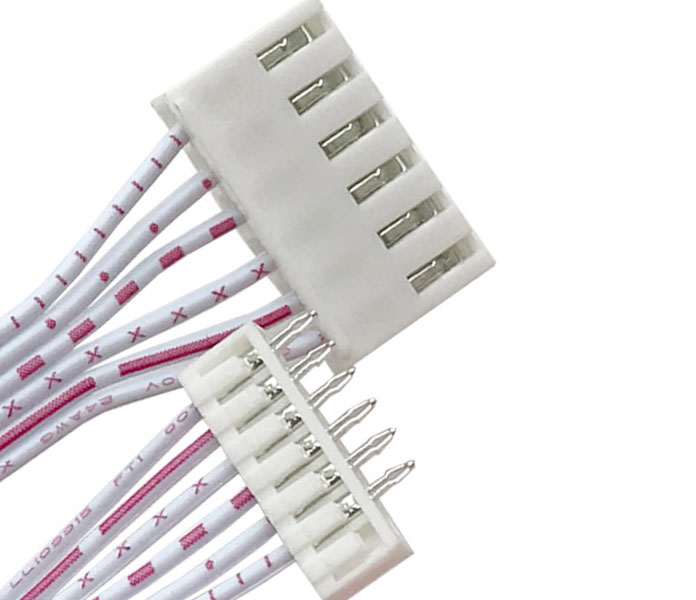

FFC cable assembly



flat ribbon cable assembly



flex cable assembly flexible cable assembly



Factory Show

Building

Auto-Making

Semi-auto Making

Over-mold producing

Warehouse

QC Line



Testing Processing

OD and Plug strong Testing

Breakover-testing

Color Testing

Wire Lenath Testing

Connector push back testing

Color Checking Again



Packing Detail

Packing in bag

Then in carton

Last by pallet



FAQ

Q1: How can I get your quotation?

A1: We need your help to send us your drawing or sample, so that we can know your connector and wire model number, also the wire length, and how to contact each wire between different connector.

Q2: How can I get your sample? It's free for testing?
A2: Yes, we offer free samples for testing service when we had done the negotiation about the price and product detail.
Q3: How you guarantee your product quality?
A3: We adopt ISO and IATF16949 control system for guarantee our quality, also we promise that all complete or sample goods should be 100% testing before packing and sending to you.
Q4: How long for your shipping?
A4: For the sample, it will be done within 5-7 days after confirm the detail. To the order, goods will be finished within 15-20 days after the sample confirmation.
Q5: How long for your quality guarantee period?
A5: 12 months.
