Chinese custom control panel new engine wiring harness assembly

Chinese custom control panel new engine wiring harness assembly

wiring harness assembly be made by PH and MX connector in 2.0 to 3.0 mm pitch with single cord for PCB board, medical and home appliance using.

  • Connector PN :

    PH/SM/MX
  • Connector Pitch :

    2.0 to 3.0 mm
  • Cable PN :

    UL1007-20AWG
  • Color :

    red/black/white/blue or custom
  • Cable Length :

    any
  • Order(MOQ) :

    1000 pieces
  • Payment :

    T/T
  • Lead Time :

    15-20 days

wiring harness assembly design both end in connector for contacting PCB to machine, saving space and time for assembly, it using UL1007/1015 wire mostly in 20/22/24/26/28 AWG.

Sample QC Shipping Payment Carton Size  Carton Weight Custom Service After-sale
Free for testing 100% testing Express or Ocean T/T 20X30X40 CM 0.5KG/each Yes 24 hours service

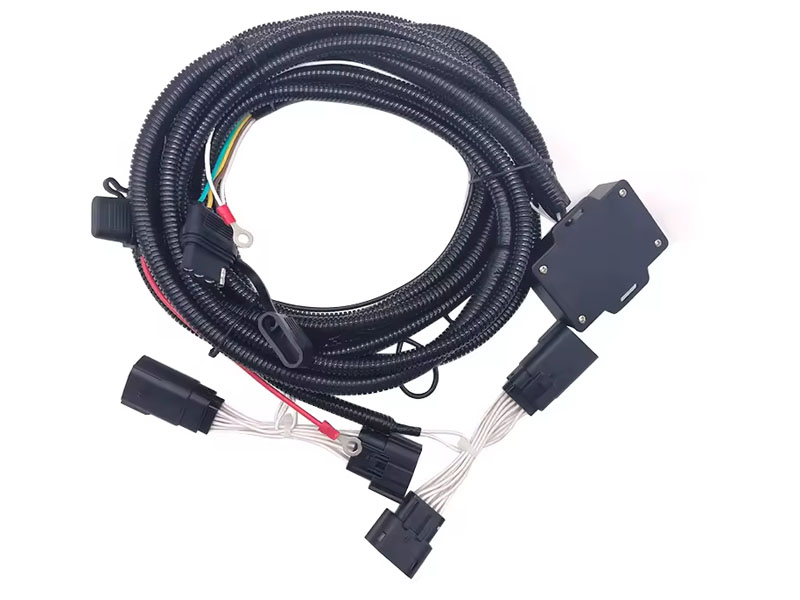

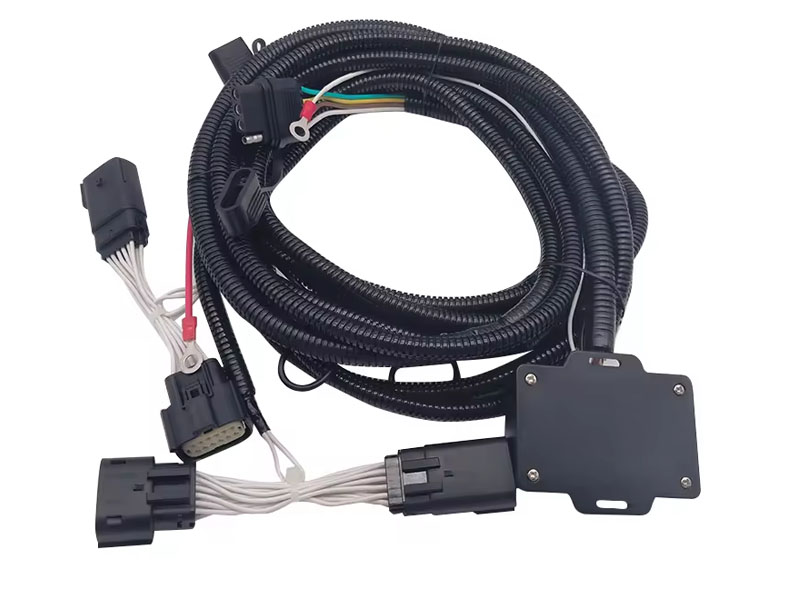

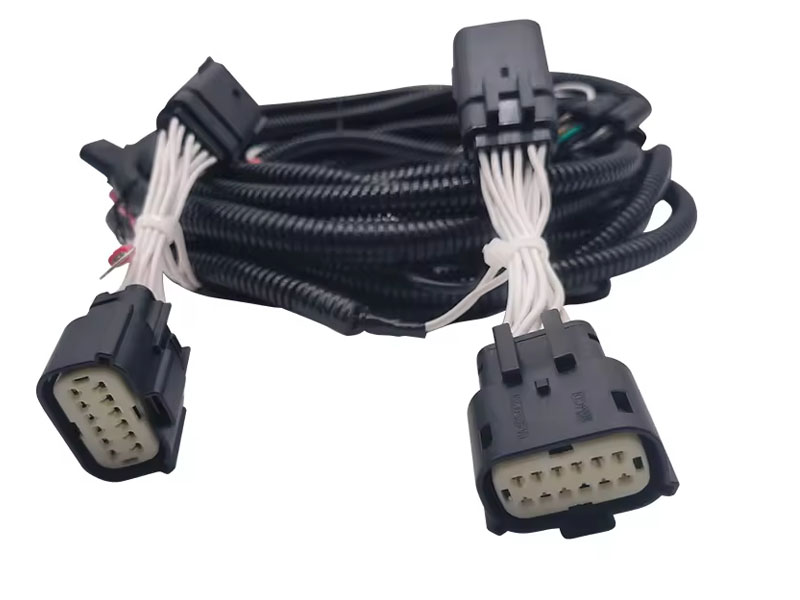

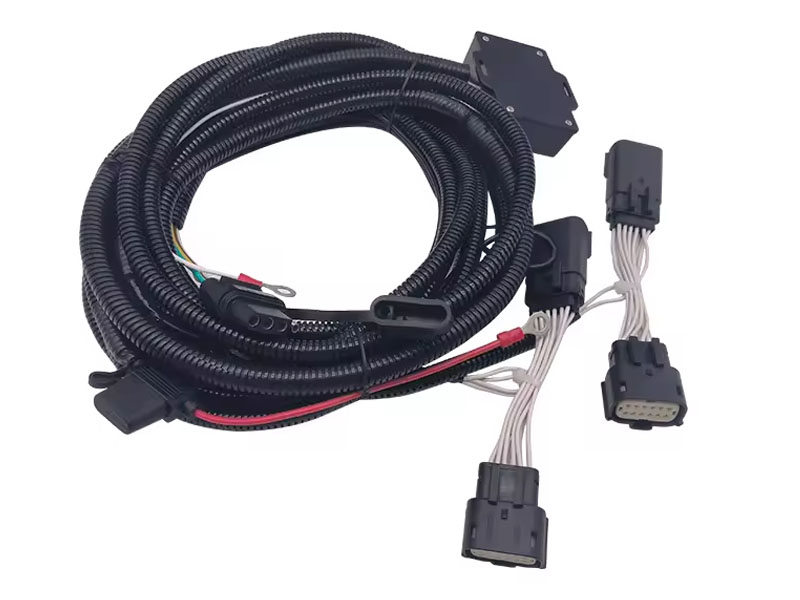

Product Detail

wiring harness assembly



cable harness production



new engine wiring harness control panel wiring harness



Factory Show

Building

Auto-Making

Semi-auto Making

Over-mold producing

Warehouse

QC Line



Testing Processing

OD and Plug strong Testing

Breakover-testing

Color Testing

Wire Lenath Testing

Connector push back testing

Color Checking Again



Packing Detail

Packing in bag

Then in carton

Last by pallet



FAQ

Q1: How can I get your quotation?

A1: We need your help to send us your drawing or sample, so that we can know your connector and wire model number, also the wire length, and how to contact each wire between different connector.

Q2: How can I get your sample? It's free for testing?
A2: Yes, we offer free samples for testing service when we had done the negotiation about the price and product detail.
Q3: How you guarantee your product quality?
A3: We adopt ISO and IATF16949 control system for guarantee our quality, also we promise that all complete or sample goods should be 100% testing before packing and sending to you.
Q4: How long for your shipping?
A4: For the sample, it will be done within 5-7 days after confirm the detail. To the order, goods will be finished within 15-20 days after the sample confirmation.
Q5: How long for your quality guarantee period?
A5: 12 months.
