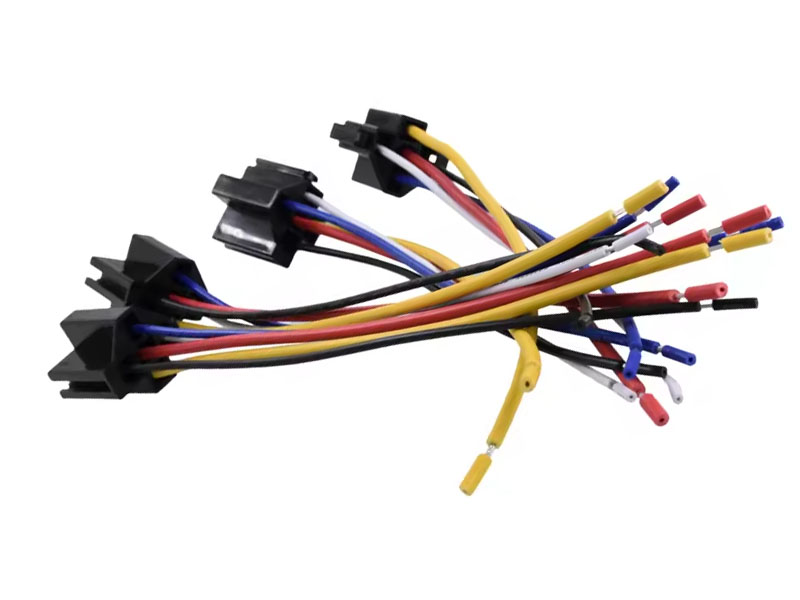

custom 5 pin relay wiring harness automotive wire harness assembly

custom 5 pin relay wiring harness automotive wire harness assembly

5 pin relay harness be made by different brand connector in 2.5 pitch with single cord for car using in 12V DC to relay.

  • Connector PN :

    relay
  • Connector Pitch :

    2.5 mm
  • Cable PN :

    UL1015-20AWG
  • Color :

    red/black/white/blue or custom
  • Cable Length :

    any
  • Order(MOQ) :

    1000 pieces
  • Payment :

    T/T
  • Lead Time :

    15-20 days

5 pin relay harness be widely used in car door, tracker, energy and security to guarantee car working and safety in American and EU.

Some design of 5 pin relay harness adopt 1/3/5 A fuse with holder so that it can avoid big current to damage the full using wire or the part of the car.

Sample QC Shipping Payment Carton Size  Carton Weight Custom Service After-sale
Free for testing 100% testing Express or Ocean T/T 20X30X40 CM 0.5KG/each Yes 24 hours service



Product Detail

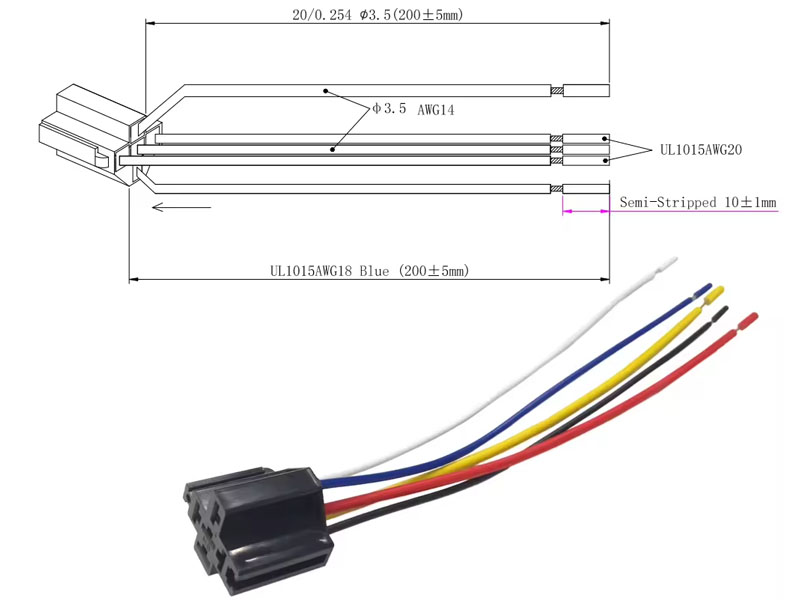

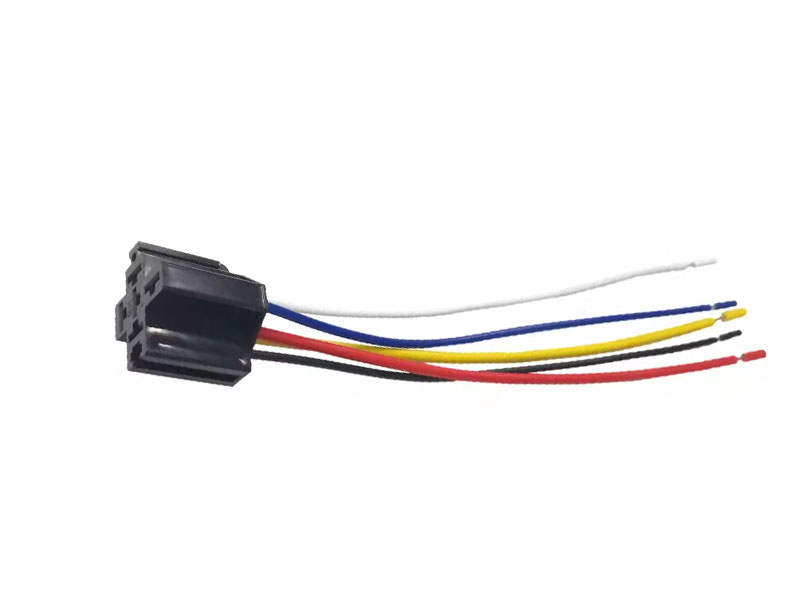

5 pin relay harness

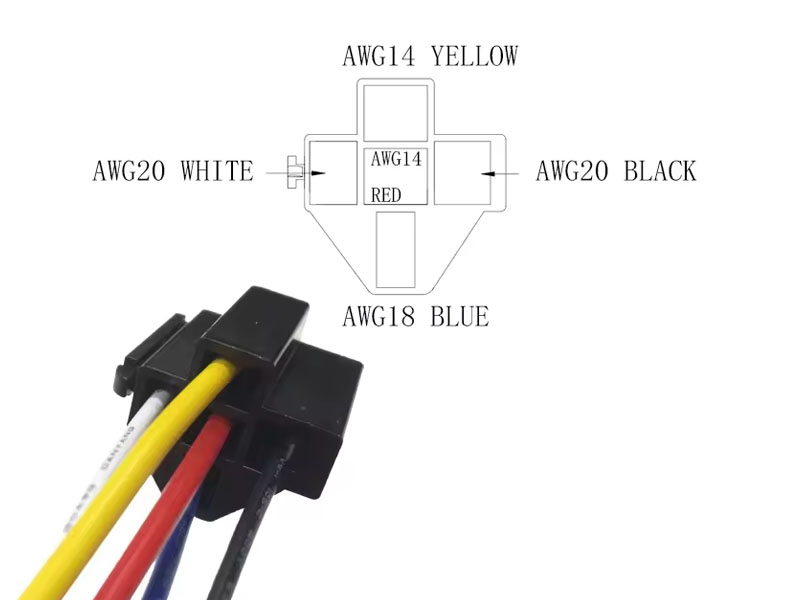

5 pin relay wiring harness



classic car wiring harness automotive wire harness assembly



Factory Show

Building

Auto-Making

Semi-auto Making

Over-mold producing

Warehouse

QC Line



Testing Processing

OD and Plug strong Testing

Breakover-testing

Color Testing

Wire Lenath Testing

Connector push back testing

Color Checking Again



Packing Detail

Packing in bag

Then in carton

Last by pallet



FAQ

Q1: How can I get your quotation?

A1: We need your help to send us your drawing or sample, so that we can know your connector and wire model number, also the wire length, and how to contact each wire between different connector.

Q2: How can I get your sample? It's free for testing?
A2: Yes, we offer free samples for testing service when we had done the negotiation about the price and product detail.
Q3: How you guarantee your product quality?
A3: We adopt ISO and IATF16949 control system for guarantee our quality, also we promise that all complete or sample goods should be 100% testing before packing and sending to you.
Q4: How long for your shipping?
A4: For the sample, it will be done within 5-7 days after confirm the detail. To the order, goods will be finished within 15-20 days after the sample confirmation.
Q5: How long for your quality guarantee period?
A5: 12 months.
